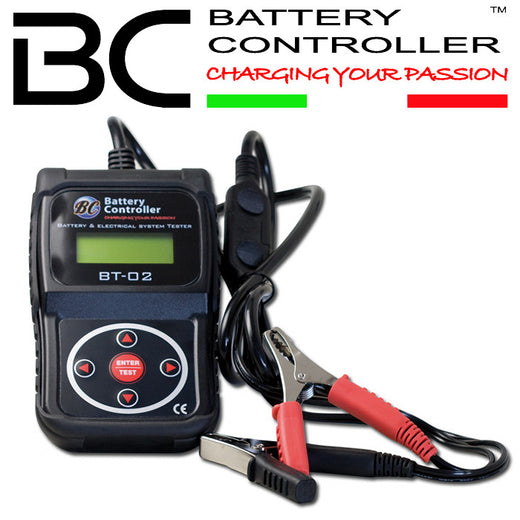

Battery tester "BT02"

Professional tester for 6 and 12 volt lead-acid batteries as well as for 12/24 volt electric starter and charging systems. The quick test procedure displays results and recommended actions on the LCD within a few seconds.

Test functions

• Suitable for wet, gel, SLI, MF, VRLA, AGM and Ca/Ca batteries
• Testing of deeply discharged batteries over a voltmeter range of 1.5-30 V
• Selectable standards: SAE, EN, JIS, CA, DIN and IEC
• Patented test method with low load on the battery
• Result displays: “Good & Pass”, “Good & Charge”, “Charge & Check”, “Defective – Replace” and “Cell Defective – Replace”

Measuring ranges

• SAE: 40-2000CCA
• EN: 40-2100 CCA
• IEC: 30-1500CCA
• DIN: 25-1300CCA
• Voltmeter: 1.5-30V
• Error limit: CCA ±5%, voltage ±0.05%

More data

• Operating temperature: 0-50°C
• Languages: English, Italian, French, German, Spanish, Portuguese and Japanese
• Dimensions: 190 × 90 × 115mm
• Weight: 420g
• Cable length: 1.75 m
• Shockproof rubber protective case
• ABS box for storage and transport
