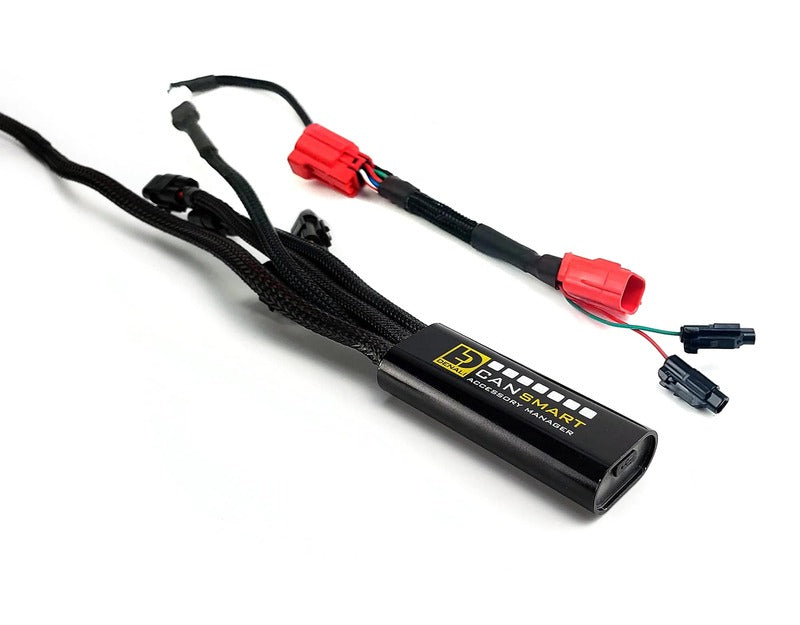

Yamaha Tenere 700 World Raid [DENALI] - CANsmart™ Controller GEN II

Product overview

The DENALI CANsmart™ Controller GEN II revolutionizes the way you attach and control accessories to your Yamaha Ténéré. With smart technology and user-friendly design, this controller offers seamless integration and maximum functionality.

Expandable control

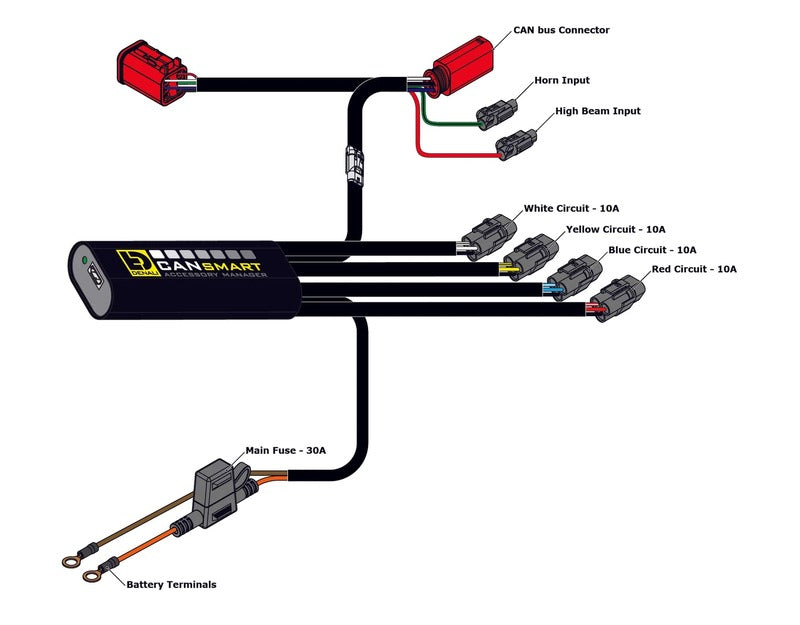

This device allows you to easily and efficiently control up to four accessories directly from your motorcycle's hand controls or the dedicated CANsmart™ software. Installation is straightforward thanks to the plug-and-play function and requires no complicated wiring or adjustments.

Improved generation

Compared to its predecessor, the CANsmart™ Controller Gen II offers increased performance with 10 amps of continuous current on all four channels and a total current carrying capacity of 30 amps. In addition, new functions have been added to modulate your additional headlights, which increase visibility and therefore safety.

Technical data:

• Product name: DENALI CANsmart™ Controller GEN II
• Volume: 2740 cm³
• Weight: 789g
• Length: 200mm
• Width: 133mm
• Height: 103mm

Smart features

• High/Low Sync: Automatic switching between high and low beam.
• ON/OFF and dimming: Primary light set can be controlled directly via the original vehicle switch.
• Modulation of lights: Increases the attention of other road users by modulating lights.
• Strobe with horn: When you press the horn, the additional headlights flash automatically.

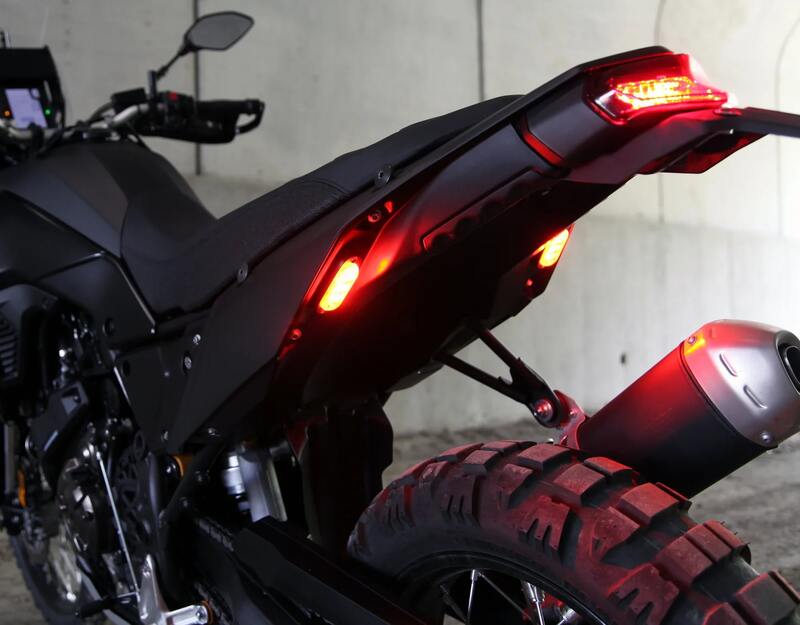

• Smart Brake Technology: Activates the brake light when slowing down, before the brake is applied.

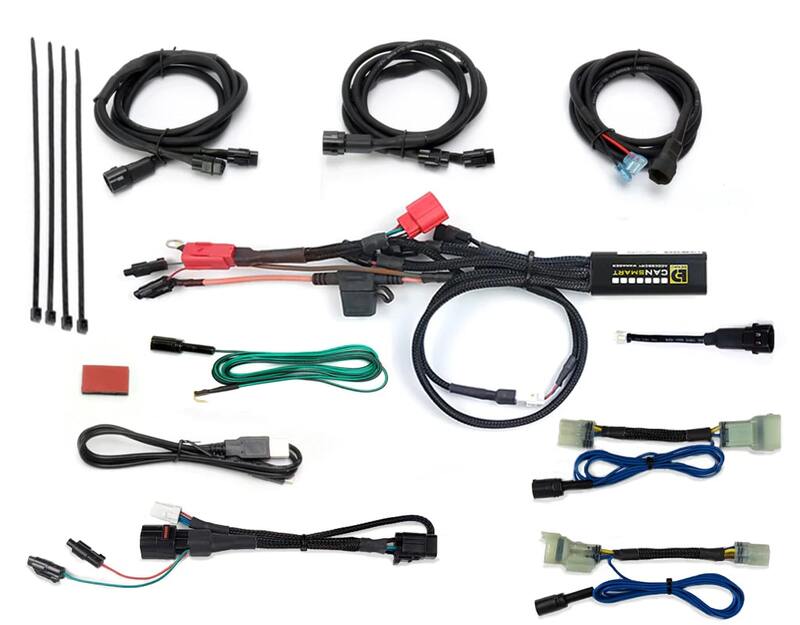

Scope of delivery

• CANsmart™ controller
• Wiring kits
• Light extension cable
• SoundBomb horn extension cable
• B6 brake light wiring adapter
• Cable ties and mounting material

Compatible vehicles

• Yamaha Ténéré 700 (2019 - 2023)
• Yamaha Ténéré 700 Rally Edition (2020 - 2023)
• Yamaha Tenere 700 World Raid (2022 - 2023)
• Yamaha Tenere 700 Extreme Edition (2023)
• Yamaha Ténéré 700 Explore Edition (2023)

Limitations

Some features such as dimmability and ON/OFF controls for certain auxiliary lights may not be available via factory controls. For complete dimming functionality, we recommend the additional DUALDIM system.
