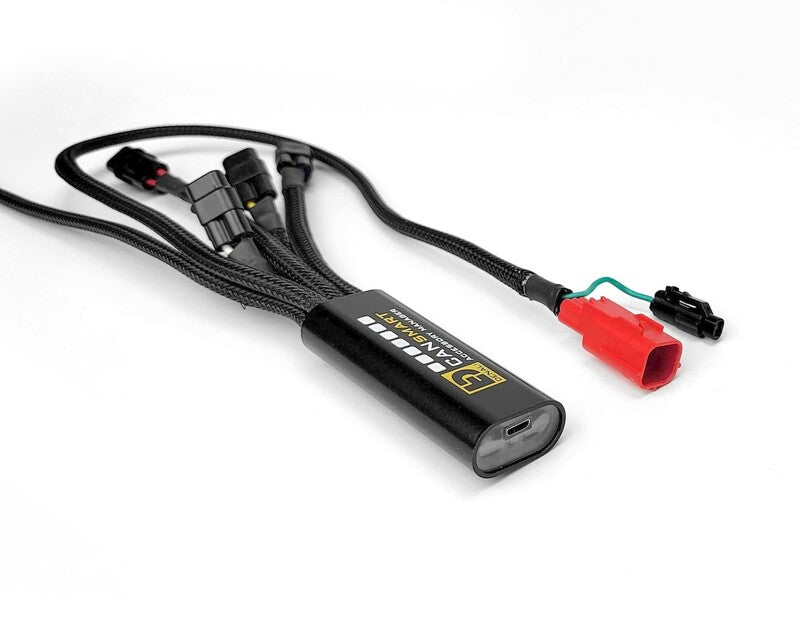

Honda Crf 1100 L Africa Twin [DENALI] - CANsmart 2.0 Plug-n-Play control unit

Harness the flexibility and intelligence of your motorcycle's CAN bus electrical system with the DENALI CANsmart™ Controller GEN II. This state-of-the-art controller allows for easy plug-and-play installation and integrated control of up to four accessories. Explore the extensive customization options that can be managed directly from the CANsmart™ Accessory Manager software.

The controller's four circuits are specifically designed to efficiently control two sets of DENALI lights, a SoundBomb horn and a B6 auxiliary brake light. Each circuit provides a full continuous output of 10 amps, and the system as a whole supports a maximum continuous current draw of 30 amps.

Gen II - More features, more power, more versatile

Compared to the previous model, the Gen II offers advanced functions such as modular additional lights for increased visibility and independent fading of the side lights when the flashing signal is activated.

Technical data:

• Product name: DENAL WIRE SET CANSMART PLUG-N-PLAY
• Description: DENALI CANsmart 2.0 Plug-n-Play control unit
• Category: Electrical accessories
• Volume: 2670 cm³
• Weight: 686g
• Length: 198mm
• Width: 131mm
• Height: 103mm

Features

• High/Low Sync: Programmable setting of the additional lights depending on the high beam switch.
• ON/OFF and dimming: Direct control of light intensity via the vehicle switches.
• Modulate lights: Increase visibility by modulating the additional lights.
• Flash to Pass: The additional lights flash three times by pressing the high beam switch.
• Fading out with flashing signal: Prevents the flashing signal from being overshadowed by strong additional lights.
• Reverse flashing with hazard warning lights: Increases visibility in road emergencies.
• Plug & Play Horn Installation: Easy installation of powerful horns.
• Strobe when honking: Automatic flashing of the additional lights when honking.
• Smart Brake technology: Activates the brake light when decelerating without braking.
• Flashing pattern braking: Four different flashing patterns for the additional brake light.
• Circuit function selector: Individual configuration of the circuits via the CANsmart software.
• Switched Power Source: Turns accessories on and off with the ignition.
• Delay Power Off Time: Keeps accessories powered for a short time after the motorcycle is turned off.
• Built-in power supply: Ideal for powering GPS, phone or heated clothing.

This control unit is not only an asset to your motorcycle, but also an investment in safety and comfort. The comprehensive functions and user-friendly software make the DENALI CANsmart™ Controller an indispensable accessory for every motorcyclist who values ​​technology and efficiency.
